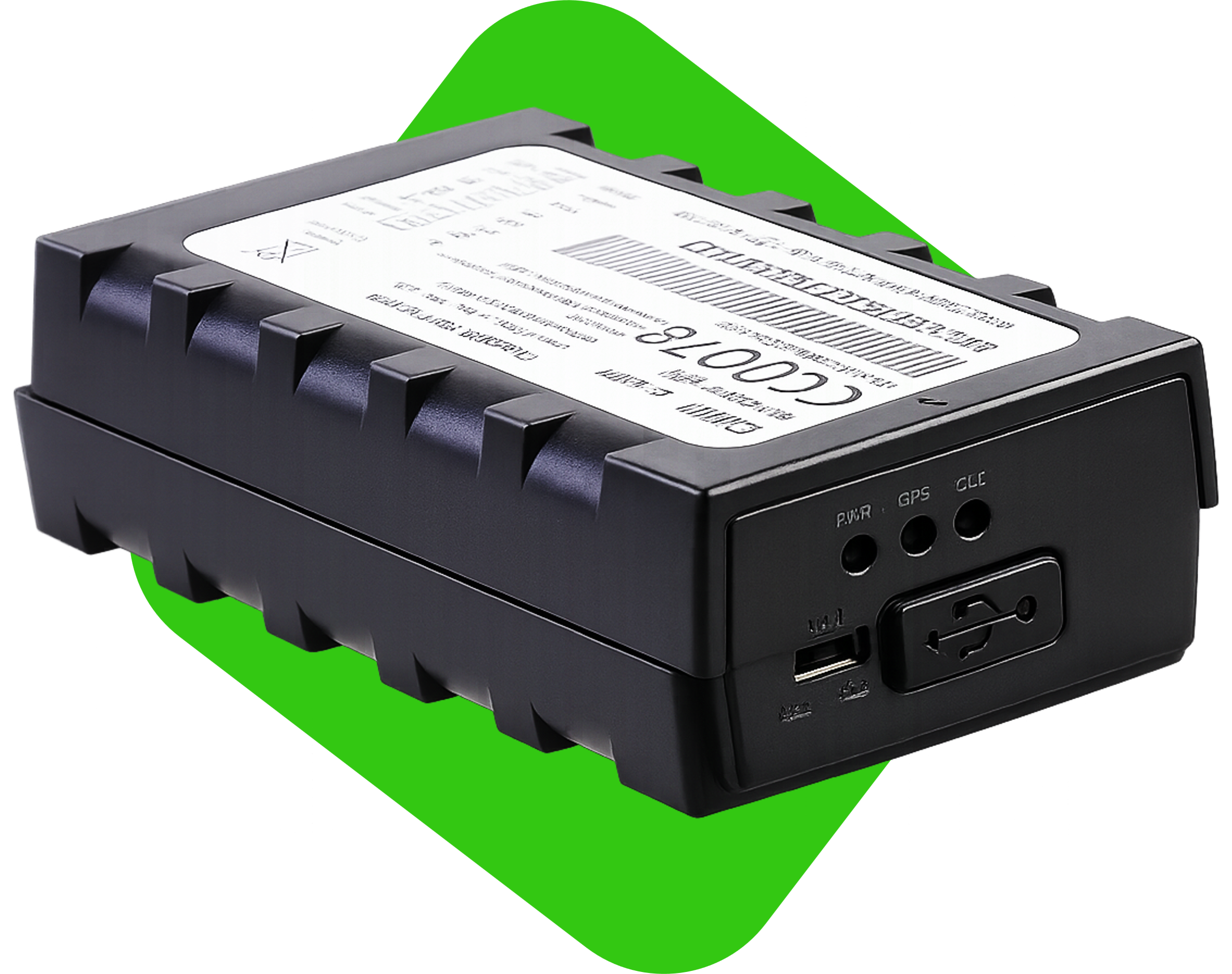

GV300W

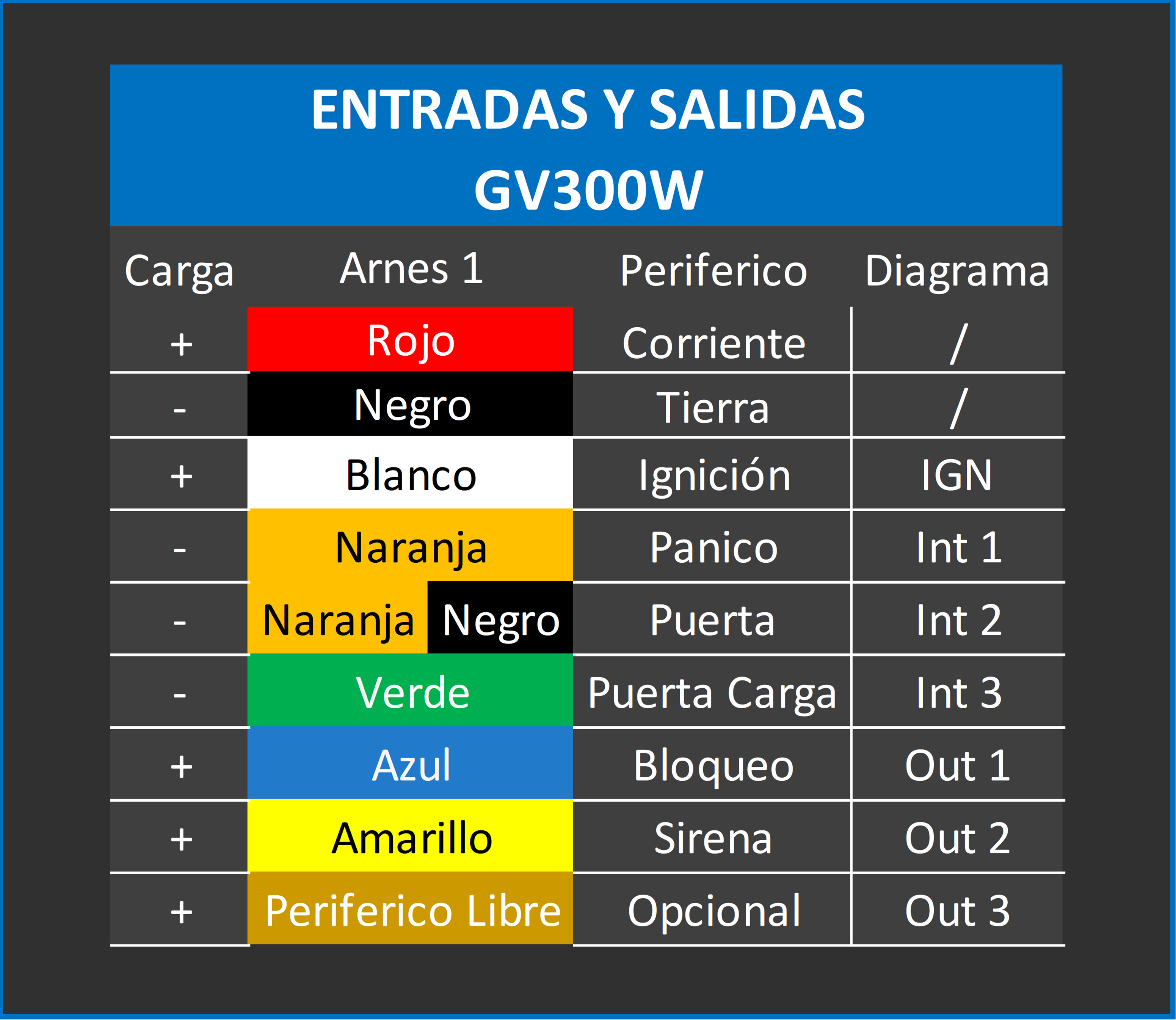

Activar Entradas y Salidas.

AT+GTOUT=gv300w,0,,,0,0,0,0,0,0,7,,0,0,,0,0,FFFF$

AT+GTDIS=gv300w,0,1,,0,1,1,1,1,2,1,1,1,3,1,,0,,,,,FFFF$

Puertos:

1 Entrada / Tierra
2 Entrada / Tierra
3 Entrada / Tierra

1 Salida / Positivo
2 Salida / Positivo
3 Salida / Positivo

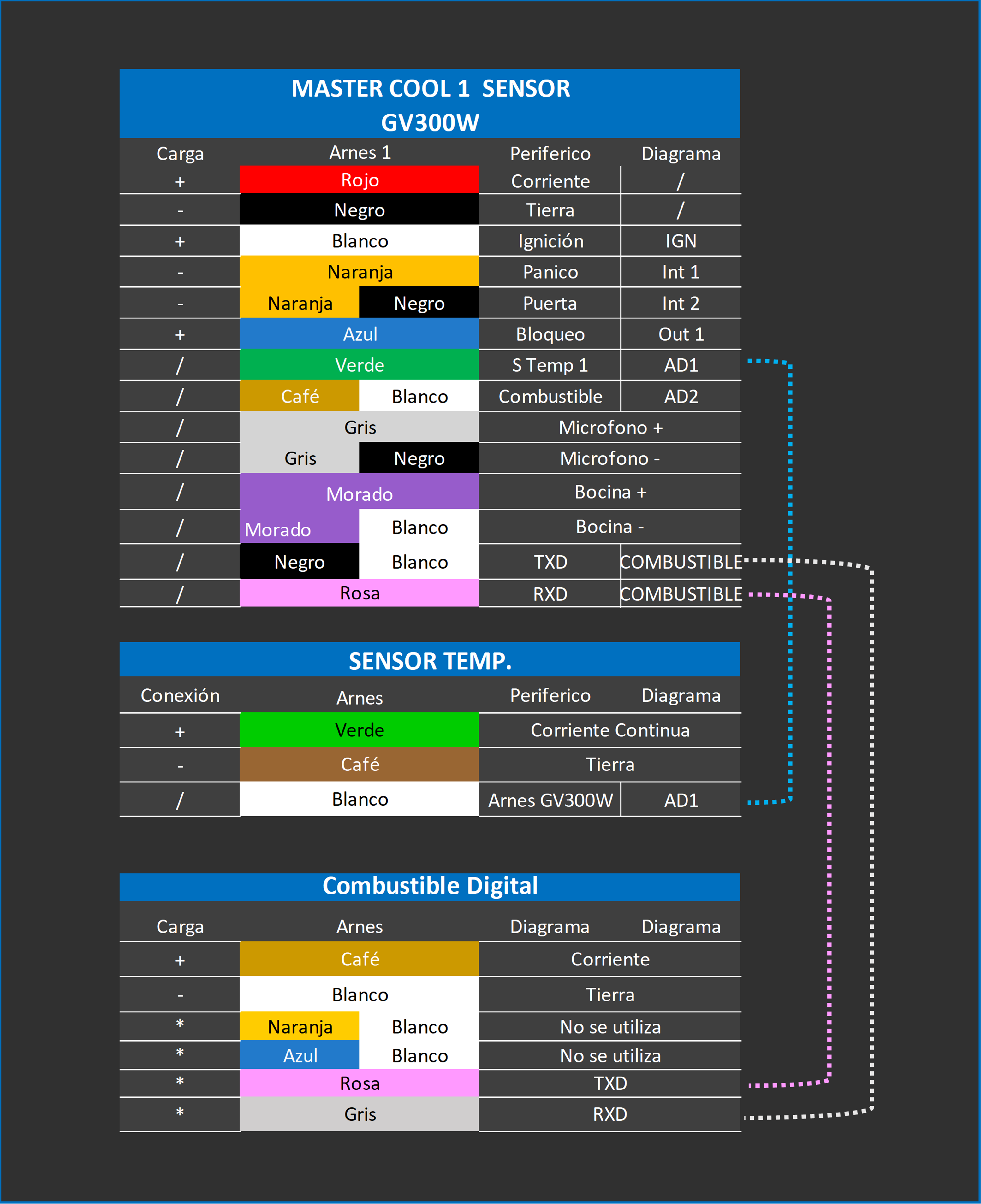

Activar Digital (Combustibel)

AT+GTFRI=gv300w,1,0,,0,0000,0000,0,60,1000,1000,,45,300,1,,,,FFFF$

AT+GTURT=gv300w,4,7,8,1,0,2,0,1,,FFFF$

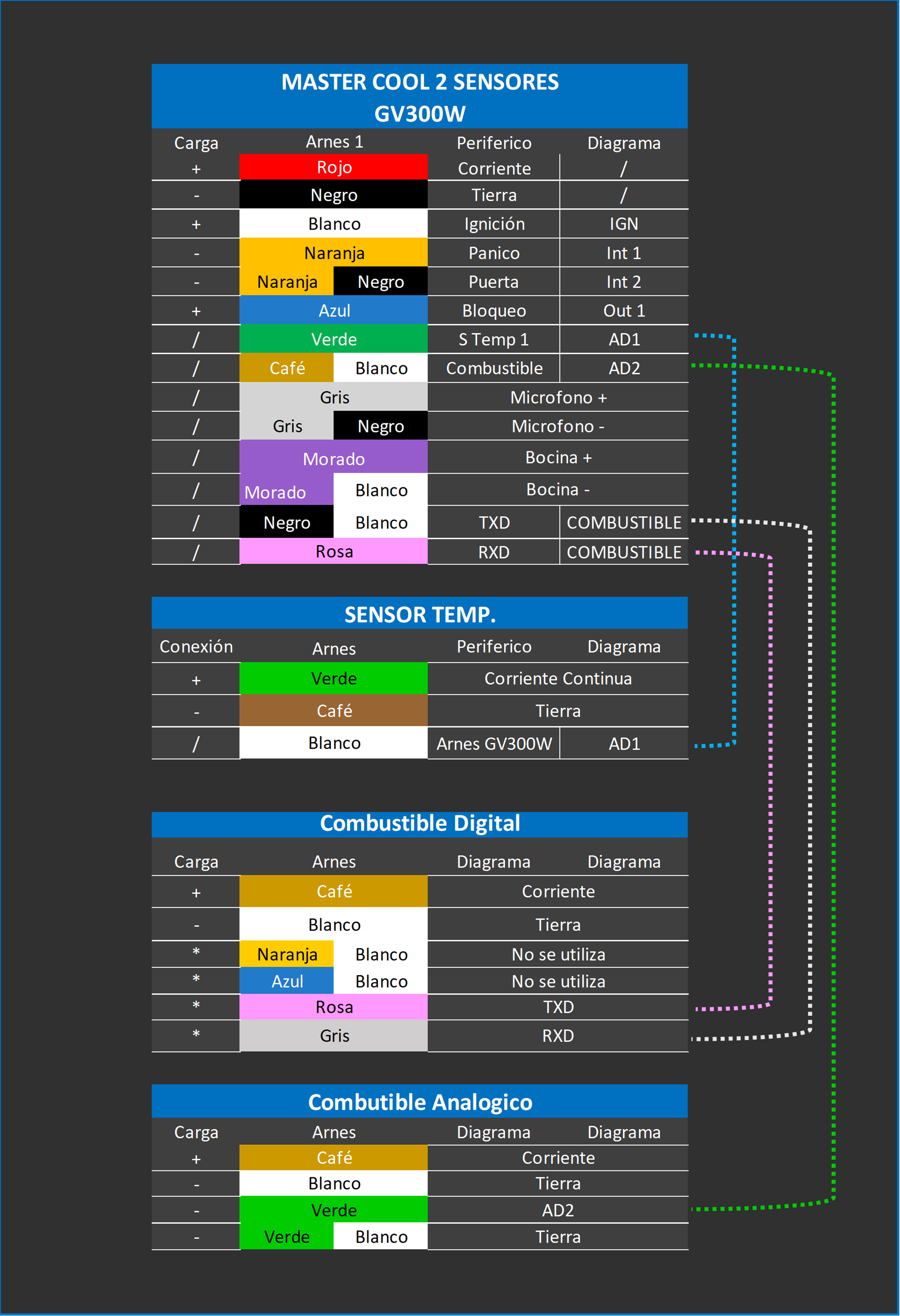

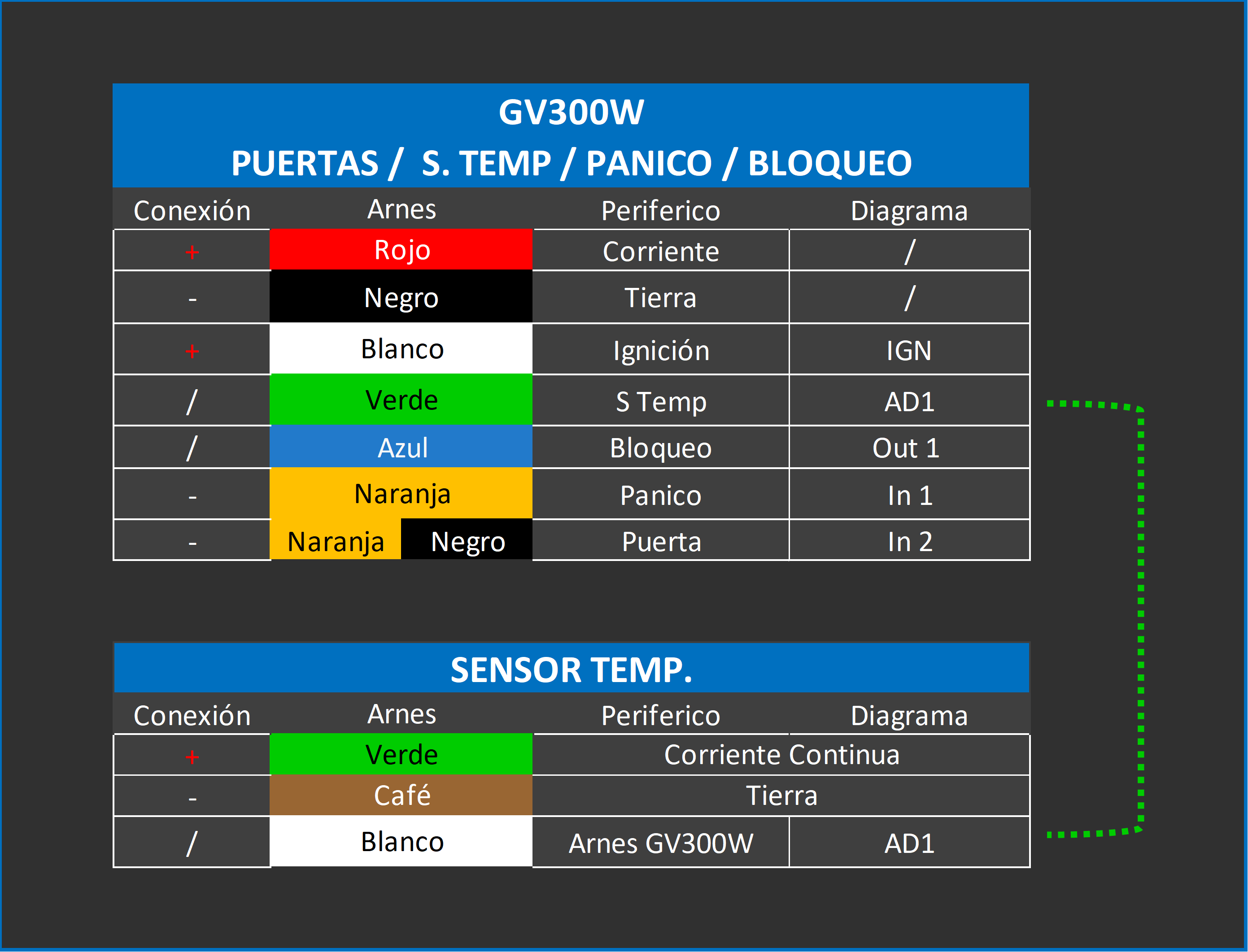

Activar Analogico / Sensores (Temperatura / Combustibel)

AT+GTAIS=gv300w,1,4,0,0,1,,0,0,0,0,1,,,2,4,250,250,1,,0,0,0,0,1,,10,30,10,20,0,0,0,FFFF$

Configurar Equipo para antiasalto:

AT+GTAIS=gv600mg,1,4,0,0,1,,0,0,0,0,1,,,,,,,,,,,,,,,10,30,10,20,0,FFFF$

Activar Salida 1 Gradual GV300w

AT+GTOUT=gv300w,2,,,,,,,,,7,,0,0,,0,0,FFFF$

Desactivar Salida 1 GV300w

AT+GTOUT=gv300w,0,,,,,,,,,7,,0,0,,0,0,FFFF$

Activar Salida 2 GV300w

AT+GTOUT=gv300w,,,,1,0,0,,,,7,,0,0,,0,0,FFFF$

Desactivar Salida 2 GV300w

AT+GTOUT=gv300w,,,,0,0,0,,,,7,,0,0,,0,0,FFFF$

Activar Salida 3 GV300w

AT+GTOUT=gv300w,,,,,,,1,0,0,7,,0,0,,0,0,FFFF$

Desactivar Salida 3 GV300w

AT+GTOUT=gv300w,,,,,,,0,0,0,7,,0,0,,0,0,FFFF$
