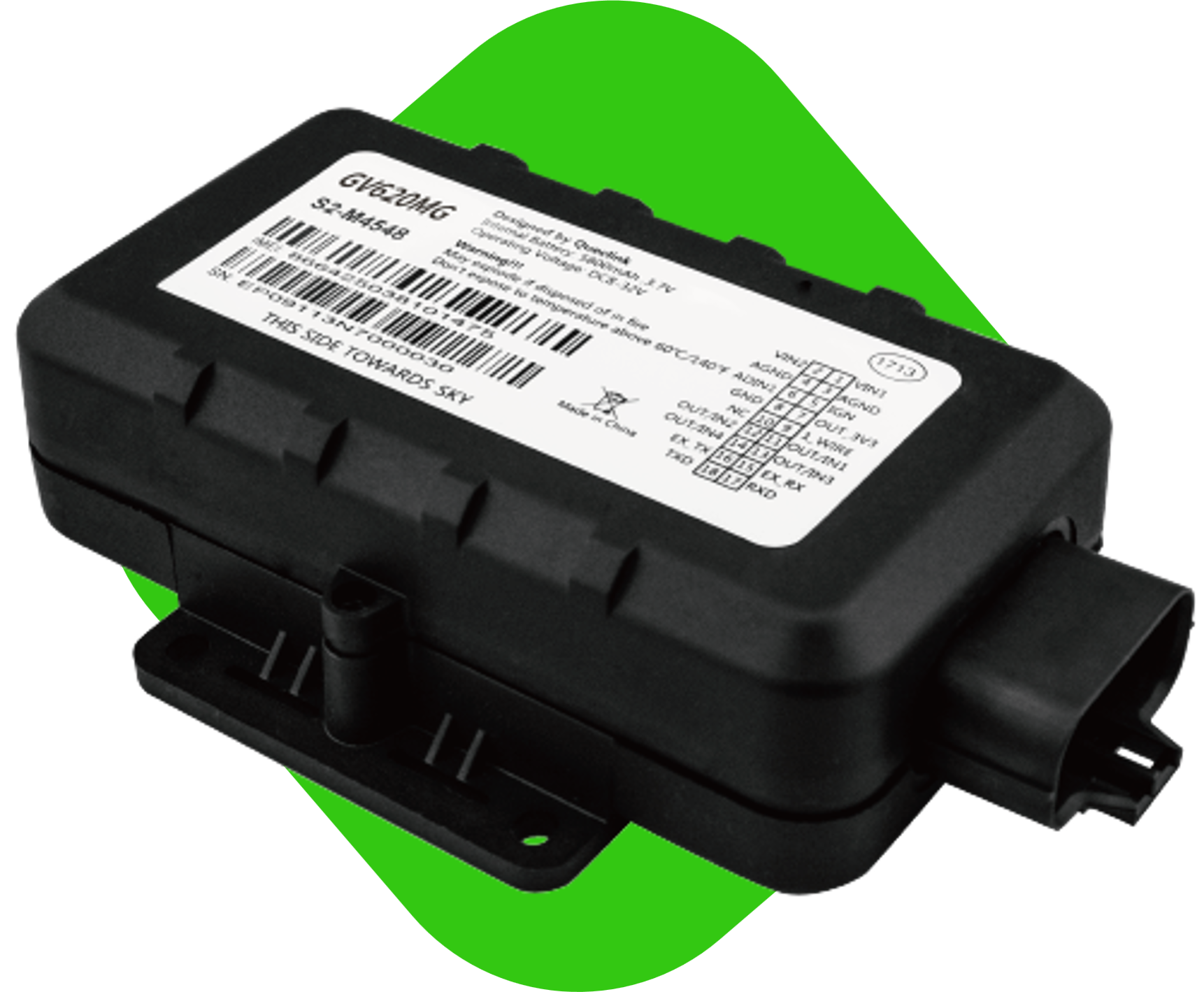

GV620MG

Activar Entradas y Salidas.

AT+GTCFG=gv600mg,gv600mg,GV600M,1,0,,,007F,2,,1A3F,6,1,1,300,00,,0,1,401F,0,1,,,,,12,10,5,0,0,0,FFFF$

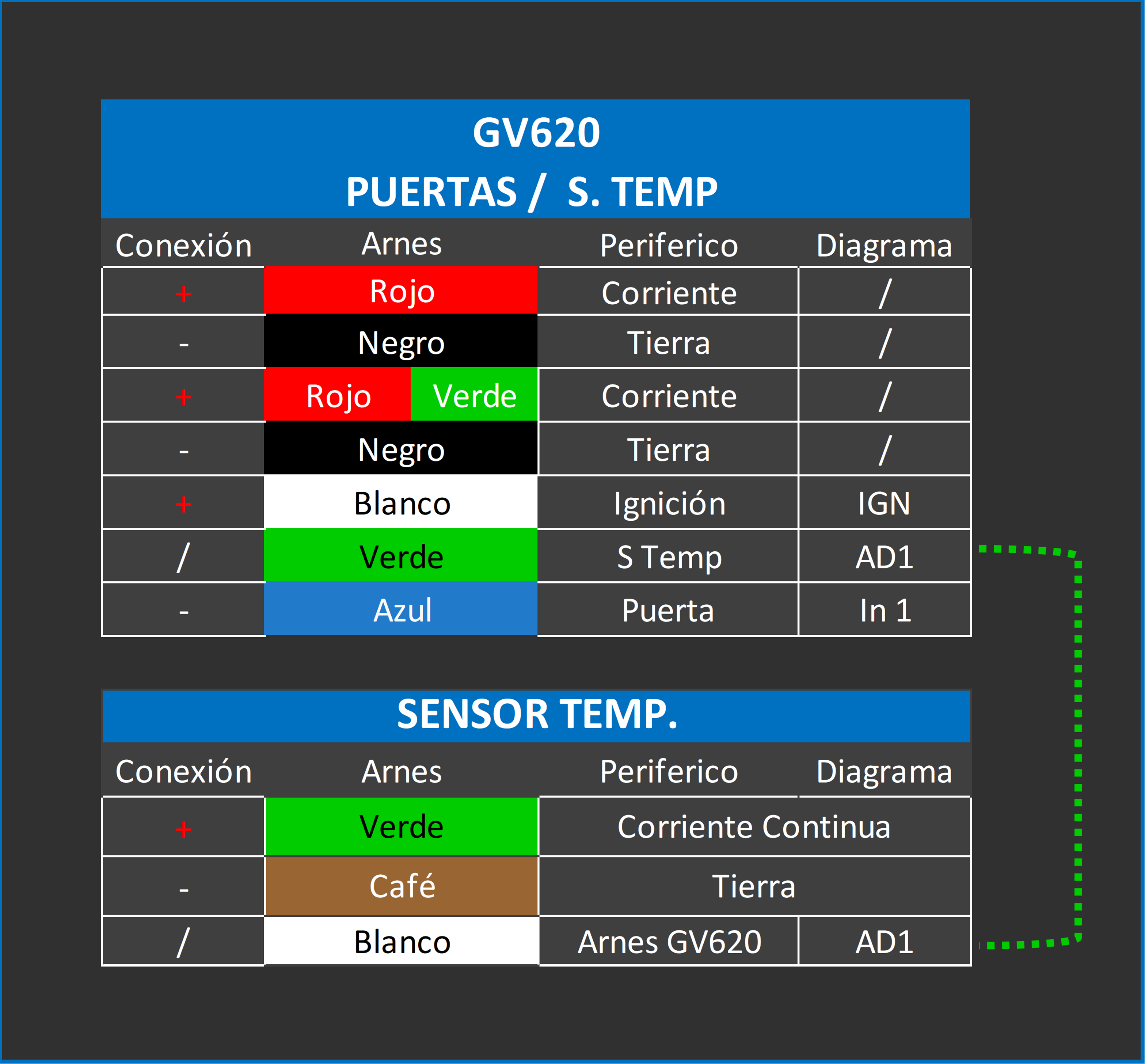

Puertos:
1 Entrada / Puerta / Azul
2 Salida / Chapa / Amarillo
3 Salida / Disponible
4 Entrada / Disponible

AT+GTAIS=gv600mg,1,4,0,0,1,,0,0,0,0,1,,,,,,,,,,,,,,,10,30,10,20,0,FFFF$

Activar Temperatura Analógico:

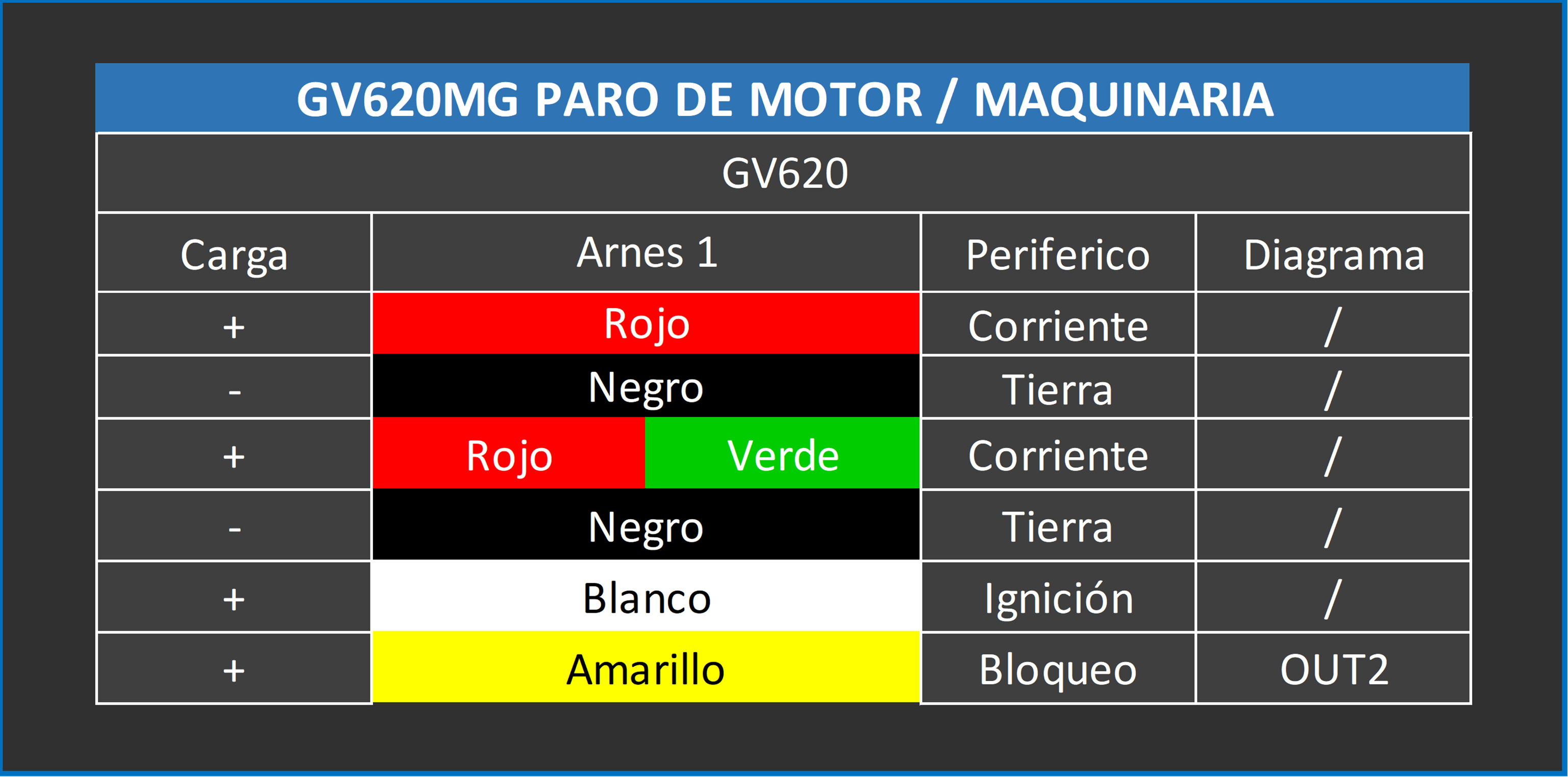

Salida 2 Chapa/Quinta:

Activar Salida 2 GV620mg

AT+GTOUT=gv600mg,,,,1,0,0,,,,,,,F,0,0,0,0,FFFF$

Desactivar Salida 2 GV620mg

AT+GTOUT=gv600mg,,,,0,0,0,,,,,,,F,0,0,0,0,FFFF$

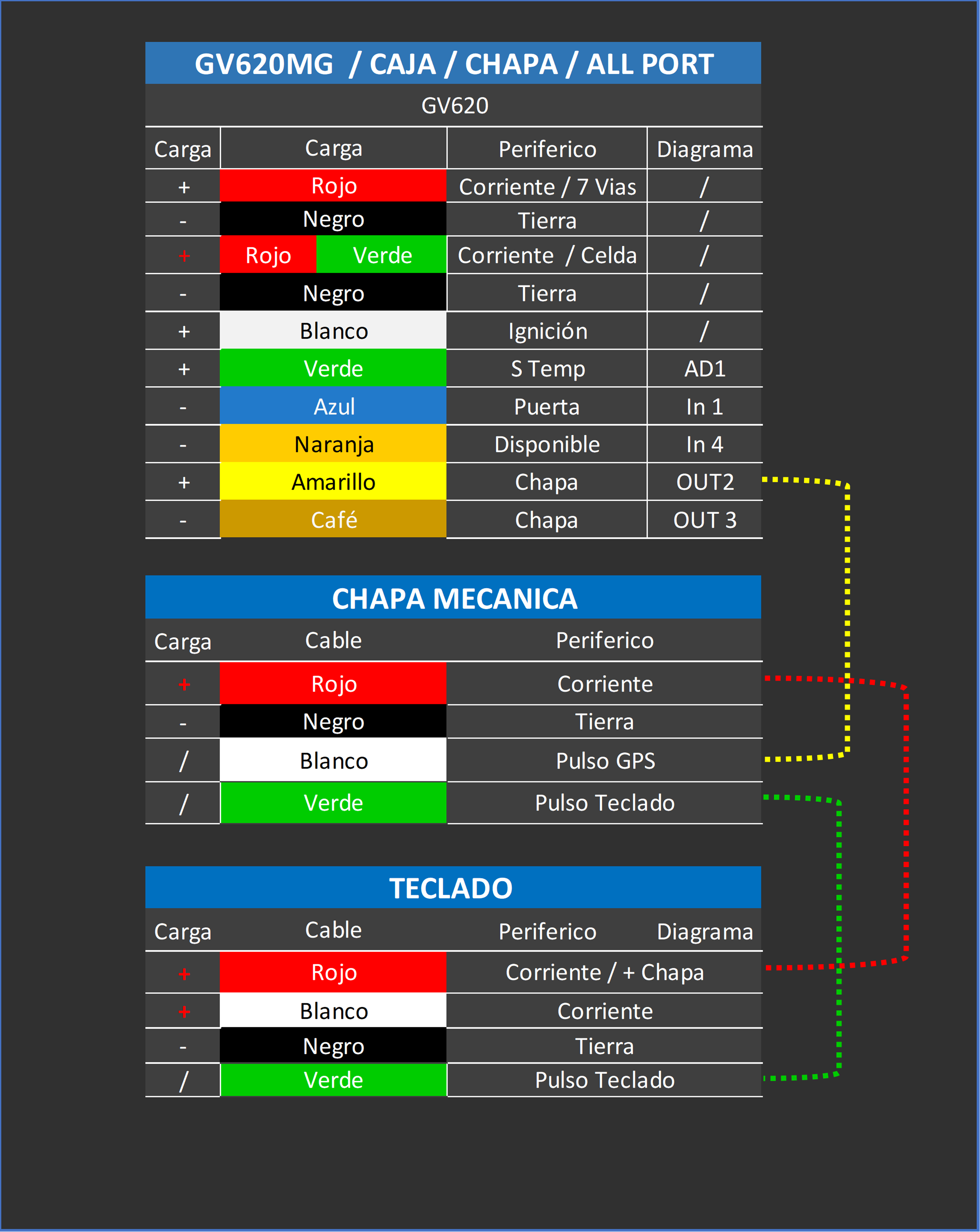

Salida 3 Disponible:

Activar Salida 3 GV620mg

AT+GTOUT=gv600mg,,,,,,,1,0,0,,,,F,0,0,0,0,FFFF$

Desactivar Salida 3 GV620mg

AT+GTOUT=gv600mg,,,,,,,0,0,0,,,,F,0,0,0,0,FFFF$
